In the high-stakes world of high-speed rail (HSR) operations, where trains traverse networks at velocities exceeding 300 kilometers per hour (186 mph), the margin for error is non-existent. Every component on a modern trainset, from the traction motors and braking systems to the signaling equipment and aerodynamic fairings, is engineered to exacting standards of precision, durability, and safety. Yet, amidst this landscape of aerospace-grade engineering, one critical system is often overlooked, underestimated, or maintained with inadequate protocols: the windshield wiper system. This oversight is not merely a maintenance inconvenience; it is a profound safety vulnerability. When a train driver’s view is obscured by heavy rain, snow, sleet, or salt spray at 300 km/h, the reaction time available to identify track hazards, signals, or obstacles is reduced to mere fractions of a second. In these moments, the performance of the wiper system becomes the singular determinant between a safe passage and a catastrophic incident.
For website administrators managing technical resources for railway operators, fleet managers, procurement specialists, and maintenance engineers, providing accurate, comprehensive, and professional-grade guidance on wiper installation and maintenance is essential. The prevailing approach in many rail depots—treating wipers as disposable automotive accessories to be swapped out by general staff with minimal training—is fundamentally flawed and dangerously insufficient for the rigors of high-speed travel. The physics of fluid dynamics at 300 km/h, the corrosive nature of coastal and winter environments, the intense vibration spectra generated by pantograph-catenary interactions, and the extreme duty cycles of commercial rail service demand a level of expertise that far exceeds standard automotive practices.
This comprehensive guide, "How to Install and Maintain high-speed train wipers Like a Pro," is designed to bridge the knowledge gap between basic replacement procedures and professional-level mastery. It serves as the ultimate manual for railway professionals seeking to elevate their maintenance standards, optimize system longevity, and ensure uncompromised visibility in the most hostile conditions. We will delve deep into the technical nuances of selecting the correct marine-grade and rail-specific components, mastering the geometric alignment required to prevent aerodynamic lift-off, executing precision installation protocols that guarantee watertight integrity, and implementing rigorous preventative maintenance schedules that predict failures before they occur.
Unlike generic guides that skim the surface, this article provides granular, step-by-step instructions backed by engineering principles. We will explore the specific tools required for professional installation, including torque wrenches calibrated for aerospace fasteners, laser alignment devices for precise arc geometry, and diagnostic equipment for testing motor torque and current draw. We will dissect the chemistry of advanced rubber compounds, explaining why silicone and EPDM blends infused with graphite or PTFE are mandatory for HSR applications, and how improper handling can ruin their hydrophobic properties. We will analyze the structural integrity of linkage systems, detailing how to inspect for micro-fatigue cracks in stainless steel rods and when to replace sealed spherical bearings to eliminate chatter.
Furthermore, this guide addresses the operational context of high-speed rail. We will discuss the unique challenges posed by tunnel pressure waves, the abrasive effect of salt spray on coastal lines, and the freezing conditions of alpine routes. We will provide specialized protocols for winterization, including the use of heated blades and anti-ice fluids, and strategies for managing wiper systems during extreme weather events like typhoons or blizzards. We will also cover the integration of smart technologies, such as rain sensors and IoT-enabled diagnostic modules, explaining how to calibrate these systems for optimal performance and how to interpret their data for predictive maintenance.
By adopting the professional methodologies outlined in this guide, railway operators can transform their wiper maintenance from a reactive, cost-center activity into a proactive, safety-critical function. The benefits are tangible: reduced downtime due to wiper failures, extended component lifespan leading to lower total cost of ownership (TCO), improved driver confidence and reduced fatigue, and, most importantly, a significant enhancement in overall operational safety. Whether you are outfitting a new fleet of next-generation bullet trains or retrofitting an existing roster with upgraded marine-grade systems, this guide provides the roadmap to achieving professional excellence. Let us embark on a detailed journey to master the art and science of high-speed train wiper installation and maintenance.
Before diving into the practical steps of installation and maintenance, it is imperative to understand the "why" behind the strict professional standards required for high-speed train wipers. The environment in which these systems operate is fundamentally different from that of a passenger car, and the consequences of failure are exponentially more severe. A "good enough" installation that might suffice for a vehicle traveling at 100 km/h can lead to catastrophic failure at 300 km/h.
The primary adversary of any high-speed wiper system is aerodynamic force. The dynamic pressure ($q$) exerted by air on an object is defined by the equation $q = \frac{1}{2} \rho v^2$, where $\rho$ is air density and $v$ is velocity. This quadratic relationship means that doubling the speed quadruples the force. Tripling the speed increases the force by a factor of nine.
Lift Forces and Blade Detachment:At 120 km/h (typical highway speed), the lift force on a standard wiper blade is manageable. However, at 300 km/h, the lift force is approximately 6.25 times greater. If a blade is not perfectly aligned, or if the arm tension is insufficient, this massive lift force can overcome the downward pressure of the wiper arm. The result is "lift-off," where the blade loses contact with the glass, leaving a critical blind spot. Worse, the detached blade can enter a state of violent flutter, generating high-frequency vibrations that can fatigue the metal arm, crack the windshield, or even tear the entire assembly off the train nose. Professional installation requires precise calculation of the arm spring tension and the use of aerodynamic beam blades with integrated spoilers to generate downforce, countering the lift.
Drag and Motor Stall:The drag force resisting the wiper's movement also increases with the square of speed. At 300 km/h, the motor must exert immense torque to sweep the blade against the headwind. An improperly installed linkage with even slight misalignment increases friction, adding to the load. If the total load exceeds the motor's torque capacity, the system will stall. In heavy rain or snow, this stall can happen instantly, leaving the driver blind. Professional maintenance involves verifying the motor's torque output under load and ensuring the linkage moves freely with zero binding.
High-speed trains operate in a complex vibration environment. Sources include wheel-rail interaction, track irregularities, pantograph-catenary oscillations, and aerodynamic turbulence. These sources generate a broad spectrum of frequencies, from low-frequency swaying to high-frequency ringing.
Resonance and Fatigue:Every mechanical component has a natural frequency. If the excitation frequency from the train matches the natural frequency of the wiper arm or linkage, resonance occurs. In a resonant state, vibration amplitudes amplify dramatically, leading to rapid metal fatigue. A loosely installed bolt or a worn bushing can shift the natural frequency of the system into a dangerous range, triggering resonance. Professional installation demands the use of calibrated torque wrenches to ensure all fasteners are tightened to exact specifications, preventing loosening due to vibration. It also requires the use of high-quality, pre-lubricated spherical bearings that dampen vibration rather than transmitting it.
Chatter and Visibility Loss:Vibration can also cause "chatter," where the blade skips across the glass instead of sliding smoothly. Chatter is often caused by incorrect blade angle, worn linkage joints, or contaminated glass. At high speeds, chatter not only fails to clear water but also creates a distracting noise and visual strobe effect that can induce driver fatigue and headaches. Professional maintenance includes regular inspection of linkage play and blade condition, ensuring that the system remains stable and quiet.
High-speed trains face aggressive environmental conditions. Coastal lines expose equipment to salt spray, while winter operations involve de-icing salts and freezing temperatures. UV radiation at high altitudes and reflection off snow or water accelerates material degradation.
The Corrosion Trap:Standard automotive components, often made of plated steel or aluminum, corrode rapidly in these conditions. Rust can seize pivot points, weaken structural members, and cause electrical failures. Professional maintenance mandates the use of marine-grade materials (316L stainless steel, naval bronze) and rigorous cleaning protocols to remove salt deposits. It also involves regular inspection for signs of pitting or galvanic corrosion, especially at junctions of dissimilar metals.
Rubber Degradation:UV radiation and ozone (generated by pantograph arcing) break down standard rubber compounds, causing cracking and hardening. Hardened blades cannot conform to the glass, leading to streaking. Professional protocols require the use of advanced silicone or EPDM compounds with UV stabilizers and regular replacement schedules based on operating hours rather than just calendar time.
Understanding these physical realities underscores why professional installation and maintenance are not optional luxuries but mandatory requirements. The margins for error are too small, and the forces too great, to rely on amateurish techniques. The following chapters will detail exactly how to meet these challenges with professional precision.
Professional execution begins long before the first bolt is turned. Proper preparation is the foundation of a successful installation. This phase involves gathering the correct specialized tools, adhering to strict safety protocols, and selecting the appropriate components for the specific train model and operating environment.
Attempting to install high-speed train wipers with standard automotive tools is a recipe for failure. The precision required demands specialized equipment:
Calibrated Torque Wrenches:
Purpose: To ensure all fasteners are tightened to the manufacturer's exact specifications. Over-tightening can strip threads or crack composite materials; under-tightening leads to vibration-induced loosening.
Specification: Use digital or click-type torque wrenches calibrated to ISO 6789 standards. Ranges should cover low torque (2-10 Nm) for blade clips and high torque (50-150 Nm) for motor mounting bolts. Calibration certificates must be current.
Laser Alignment System:
Purpose: To verify the geometric alignment of the wiper arm and blade. Precise perpendicularity to the glass at the bottom of the sweep is critical to prevent chatter and ensure full coverage.
Specification: A portable laser projection tool capable of projecting reference lines onto the curved windshield surface. Some advanced systems integrate with CAD models of the train cab for real-time verification.
Multimeter and Clamp Meter:
Purpose: To test electrical integrity, voltage drop, and motor current draw. High current draw indicates binding or excessive load; low voltage suggests wiring issues.
Specification: True-RMS multimeter with min/max recording. Clamp meter capable of measuring DC current up to 200A for motor startup surge analysis.
Pneumatic Pressure Gauge and Flow Meter:
Purpose: For pneumatic wiper systems, to verify air supply pressure and flow rate. Insufficient pressure leads to slow operation; excessive pressure can damage seals.
Specification: High-accuracy gauge (±1% FS) with a quick-connect adapter for the train's air lines.
Surface Preparation Kit:
Purpose: To ensure the mounting surface and glass are perfectly clean and free of contaminants.
Contents: Marine-grade solvents (isopropyl alcohol, acetone), lint-free wipes, plastic scrapers (to avoid scratching glass), and specialized glass polish for removing old sealant residue.
Sealant Application Gun:
Purpose: For applying structural sealants evenly and without air bubbles.
Specification: Pneumatic or battery-powered caulking gun with variable speed control for consistent bead size.
Inspection Mirror and Borescope:
Purpose: To visually inspect hidden areas behind panels, inside linkages, and under motor housings for cracks, corrosion, or loose wires.
Specification: LED-lit borescope with a flexible shaft and high-resolution display.
Working on high-speed trains involves significant hazards. Professional technicians must adhere to strict safety protocols:
Lockout/Tagout (LOTO): Before beginning any work, the train must be isolated from all power sources. This includes disconnecting the main battery, isolating the high-voltage traction system, and depressurizing the air brake system. Lockout tags must be applied to all isolation points to prevent accidental re-energization.
Personal Protective Equipment (PPE): Technicians must wear safety glasses, cut-resistant gloves, steel-toed boots, and hearing protection. When working with sealants or solvents, respiratory protection (N95 or better) is mandatory.
Working at Heights: If the wiper motor is located on the roof or requires access via a ladder or platform, fall protection harnesses must be used. Platforms must be stable and secured.
Glass Handling: Windshields are heavy and fragile. Use suction cup lifters for handling glass panels if removal is required. Never apply excessive force to the glass during installation.
Chemical Safety: Follow Material Safety Data Sheets (MSDS) for all sealants, solvents, and lubricants. Ensure adequate ventilation in the work area.
Not all wiper systems are created equal. Selecting the correct components is critical for performance and longevity.
Drive Mechanism:
Pneumatic: Best for high-torque applications, extreme cold, and hazardous environments. Ideal for large windshields and heavy ice/snow loads. Requires a robust air supply.
Electric (BLDC): Best for precise control, quiet operation, and ease of integration with smart systems. Suitable for most modern HSR applications. Ensure the motor is rated for continuous duty and has IP68/IP69K protection.
Hydraulic: Used for ultra-heavy-duty applications (e.g., mega-trains with massive windshields). Requires a hydraulic power pack.
Blade Technology:
Material: Always choose marine-grade silicone or EPDM with UV/ozone stabilizers. Avoid standard neoprene. Look for graphite or PTFE impregnation for low friction.
Design: Aerodynamic beam blades with integrated spoilers are mandatory for speeds over 200 km/h. Ensure the blade length matches the specified arc coverage for the train model.
Heating: For operations in freezing climates, select blades with integrated heating elements or pair with a heated washer system.
Linkage and Arms:
Material: 316L stainless steel or naval bronze. Avoid painted steel or aluminum.
Bearings: Sealed, pre-lubricated spherical bearings. Avoid open bushings or plastic joints.
Arm Tension: Verify the spring tension rating matches the aerodynamic requirements for the train's maximum speed.
Certification: Ensure all components carry relevant rail certifications (EN 50155, IEC 61373, UIC, FIRE safety). Marine certification (DNV, ABS) is a strong indicator of quality but must be supplemented with rail-specific validation.
By meticulously preparing with the right tools, adhering to safety protocols, and selecting superior components, you set the stage for a professional installation that will deliver years of reliable service.
The installation process is where theory meets practice. Each step must be executed with precision to ensure the system performs as designed. Deviating from the protocol can introduce weaknesses that lead to premature failure.
Access the Mounting Area: Remove any interior panels, cowl covers, or exterior fairings required to access the wiper motor and linkage mounting points. Keep track of all fasteners and organize them logically.
Inspect the Mounting Surface: Check the area where the motor and linkage will be mounted. It must be flat, clean, and structurally sound. Look for signs of previous corrosion, cracks, or deformation. If the surface is damaged, repair it before proceeding.
Clean the Glass: Thoroughly clean the windshield with a marine-grade solvent to remove all wax, oil, grease, and old sealant residue. Use a plastic scraper gently to avoid scratching. Finish with a lint-free wipe soaked in isopropyl alcohol. The glass must be squeaky clean to ensure proper blade adhesion and sealant bonding.
Dry Fit the Components: Place the motor and linkage assembly in position without securing it. Verify that there is sufficient clearance for movement and that the arm can reach the full sweep arc without hitting frames, roofs, or other wipers.
Apply Sealant: Apply a continuous bead of high-quality marine-grade structural sealant (polysulfide or polyurethane) to the base of the motor housing and linkage brackets. Do not use silicone for structural bedding. Ensure the bead is uniform and free of gaps.
Position the Assembly: Carefully lower the assembly onto the mounting surface. Align the bolt holes precisely.
Insert Fasteners: Insert all mounting bolts by hand to avoid cross-threading. Use washers under bolt heads and nuts to distribute load.
Torque to Specification: Using a calibrated torque wrench, tighten the bolts in a star pattern to the manufacturer's specified torque value. This ensures even pressure distribution and prevents warping. Re-check torque after 24 hours if recommended by the sealant manufacturer.
Verify Alignment: Use the laser alignment tool to check the geometric position of the wiper arm. The blade should be perpendicular to the glass at the bottom of the sweep (park position). Adjust the spline position on the motor shaft if necessary to achieve the correct angle. Tighten the arm nut to the specified torque.
For Electric Systems:
Wire Routing: Route the power and control cables through protected conduits. Avoid sharp bends or areas where chafing could occur. Secure cables with stainless steel clamps.
Connections: Strip wire ends cleanly and crimp using high-quality, tinned copper lugs. Use heat-shrink tubing with adhesive lining to create waterproof connections.
Grounding: Ensure the motor housing is properly grounded to the train chassis to prevent stray currents and corrosion.
Fuse Protection: Install a fuse or circuit breaker close to the power source, rated according to the motor's maximum current draw.
For Pneumatic Systems:
Air Line Routing: Route air lines away from heat sources and moving parts. Use reinforced hoses rated for the system pressure.
Moisture Traps: Install inline moisture traps and filters close to the motor to prevent water and oil from entering the motor internals.
Connections: Use push-to-connect fittings or compression fittings with thread sealant (Teflon tape or paste). Ensure all connections are tight.
Pressure Regulation: Install a pressure regulator if the train's main air pressure exceeds the wiper motor's rating. Set to the specified pressure (usually 6-8 bar).

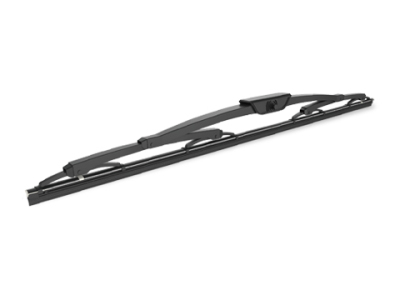

Inspect the Blade: Check the blade for any shipping damage or defects. Ensure the rubber edge is straight and free of nicks.

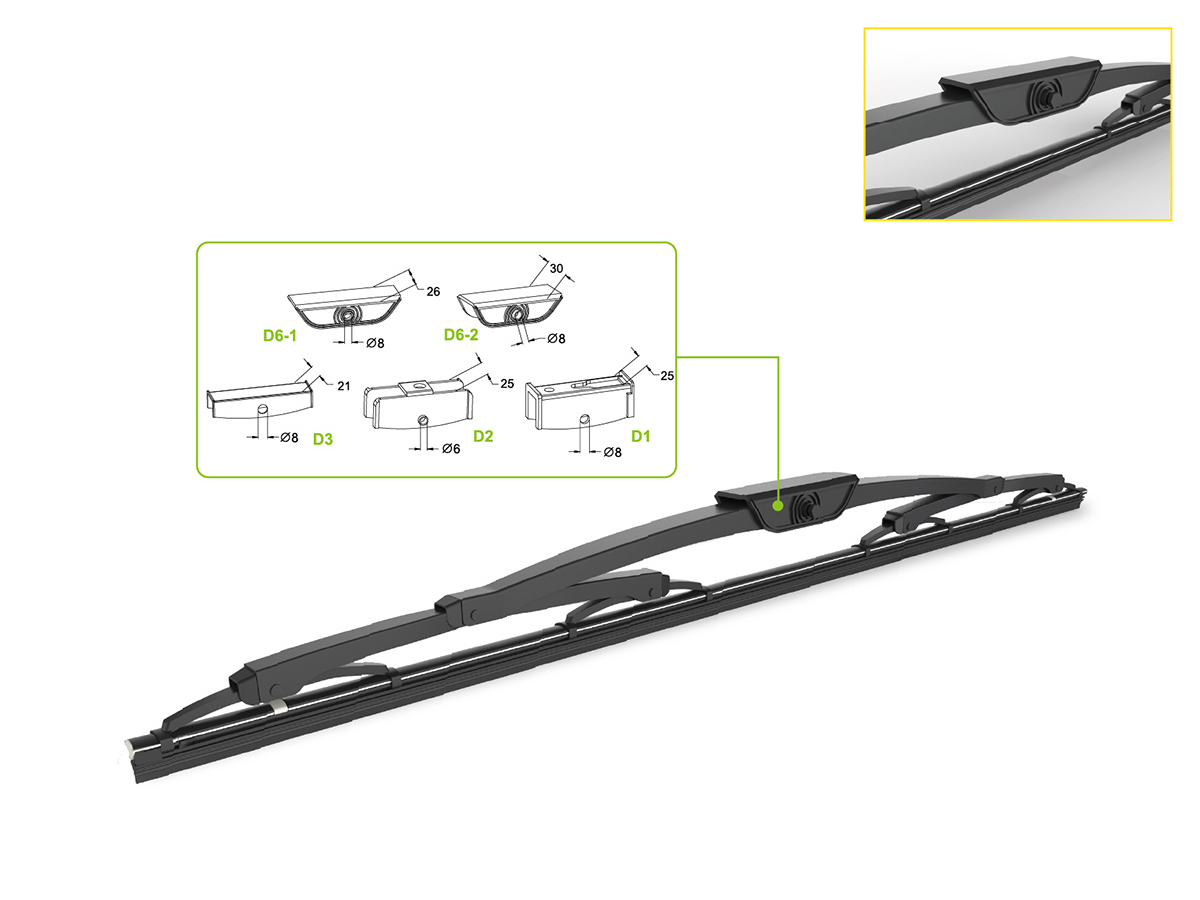

Attach to Arm: Slide the blade onto the wiper arm hook or clip mechanism. Listen for a distinct "click" to confirm it is locked securely. Tug gently to verify retention.
Check Orientation: Ensure the blade is oriented correctly (spoiler side facing the wind). An inverted blade will lift off immediately at speed.
Remove Protective Cover: Remove any plastic covers or tapes protecting the rubber edge.
Restore Power/Air: Remove LOTO devices and restore power or air supply.
Static Test: Activate the wipers in a dry state (briefly) to check for smooth movement and correct parking position. Listen for unusual noises.
Wet Test: Spray the windshield with water (or washer fluid). Run the wipers at low, high, and intermittent speeds. Observe the wipe pattern.
Coverage: Ensure the entire critical vision zone is cleared.
Streaking: Check for streaks or missed spots. If present, re-check blade angle and arm tension.
Chatter: Listen for skipping or chattering sounds. If detected, clean the glass again, check blade alignment, or inspect linkage for play.
Lift-Off: At higher speeds (if possible in a controlled test environment), verify the blade stays in contact with the glass.
Current/Pressure Check: Measure the motor current draw or air pressure consumption. Compare with baseline values. High readings indicate binding; low readings may indicate slipping.
Sensor Calibration: If equipped with rain sensors, test the automatic functionality. Simulate rain (using a spray bottle) and verify the system adjusts speed accordingly
Visual Inspection: Do a final walk-around. Ensure all panels are reinstalled, no tools are left behind, and the area is clean.
Leak Check: Inspect the sealant bed for any gaps. Spray water around the motor base to check for leaks into the cab.
Documentation: Record the installation date, part numbers, torque values, and test results in the train's maintenance log. Take photos of the final installation for future reference.
By following this rigorous protocol, you ensure that the wiper system is installed to professional standards, maximizing its performance and lifespan.
Installation is only the beginning. To maintain "pro" level performance, a robust, predictive maintenance strategy is essential. Reactive maintenance (fixing things when they break) is unacceptable for high-speed rail. Instead, adopt a proactive approach that identifies and addresses issues before they impact operations.
Establish a tiered inspection schedule based on operating hours and environmental exposure:
Daily (Driver Check):
Visual inspection of blades for tears, stiffness, or debris.
Verify proper parking position.
Report any unusual noises or streaking.
Rinse blades with fresh water if exposed to salt or heavy dirt.
Weekly (Technician Check):
Clean blades with mild soapy water to remove oil and grit.
Lubricate external pivot points with marine-grade grease (if applicable).
Check for loose fasteners on arms and linkages.
Inspect washer nozzles for clogging and alignment.
Monthly (Detailed Inspection):
Inspect linkage for play or wear. Move the arm by hand to feel for roughness.
Check electrical connections for corrosion or looseness.
Test motor current draw and compare to baseline.
Inspect sealant beds for cracks or separation.
For pneumatic systems: Drain moisture traps, check filters, and verify air pressure.
Quarterly (Performance Audit):
Conduct a full wet test to evaluate wipe quality.
Measure blade rubber hardness (durometer) to detect hardening.
Inspect motor mounts for vibration damage.
Review maintenance logs for recurring issues.
Annual (Overhaul):
Replace wiper blades regardless of appearance (rubber degrades over time).
Service motors (check brushes for electric, rebuild seals for pneumatic).
Replace linkage bearings if any play is detected.
Re-apply sealant if any signs of leakage exist.
Leverage technology to predict failures before they happen:
Current Signature Analysis: Monitor the motor's current draw over time. A gradual increase indicates increasing friction (wear, dirt, binding). A sudden spike suggests an obstruction or seizure. Trending this data allows for intervention before failure.
Vibration Analysis: Use accelerometers on the motor housing to detect changes in vibration signatures. Increased vibration can indicate bearing wear, imbalance, or loosening components.
Thermal Imaging: Use infrared cameras to detect hotspots in motors or electrical connections, indicating overload or poor contact.
IoT Integration: Implement smart wiper controllers that transmit health data (cycle count, error codes, torque levels) to a central maintenance dashboard. Set alerts for anomalies.
Even with the best maintenance, issues can arise. Here is how a pro troubleshoots them:
Problem: Streaking.
Causes: Dirty glass, worn blade edge, incorrect arm tension, contaminated rubber.
Solution: Clean glass thoroughly. Replace blade. Check tension with a gauge. Clean blade with alcohol.
Problem: Chatter/Skipping.
Causes: Incorrect blade angle, worn linkage, dirty glass, hardened rubber.
Solution: Re-align blade to be perpendicular to glass. Inspect linkage for play. Clean glass. Replace blade if hard.
Problem: Slow Operation.
Causes: Low voltage/air pressure, motor wear, binding linkage, heavy ice.
Solution: Check power/air supply. Measure motor current. Inspect linkage for freedom of movement. Use de-icer if ice is present.
Problem: Lift-Off at Speed.
Causes: Insufficient arm tension, wrong blade type (no spoiler), damaged arm.
Solution: Increase arm tension (replace spring if needed). Install aerodynamic beam blade. Inspect arm for bending.
Problem: Motor Burnout.
Causes: Continuous stalling, electrical short, overheating.
Solution: Check for binding in linkage. Verify wiring integrity. Ensure motor is rated for continuous duty.
Freezing Conditions:
Use heated blades or park wipers in a vertical position (if design allows) to prevent freezing to glass.
Fill washer reservoirs with antifreeze fluid rated for -40°C.
Inspect heating elements for continuity before winter season.
Clear ice from blades manually before activation to prevent tearing.
Salt/Coastal Environments:
Increase frequency of fresh water rinses.
Apply corrosion inhibitor sprays to metal components (avoiding rubber).
Inspect for pitting corrosion monthly.
Desert/Dusty Conditions:
Clean blades frequently to remove abrasive dust.
Use washer fluid with lubricants to reduce friction.
Check air filters (for pneumatic systems) more often.
By implementing these advanced maintenance strategies, you ensure that your high-speed train wipers remain in peak condition, providing reliable visibility in all conditions.
The field of wiper technology is evolving rapidly. Staying ahead of the curve requires understanding emerging trends that will define the next generation of high-speed rail maintenance.
AI-Driven Rain Sensing: Future systems will use cameras and AI algorithms to not only detect rain intensity but also predict its pattern, adjusting wiper speed and interval proactively.
Self-Healing Rubber: New polymer technologies allow rubber blades to "heal" minor cuts and abrasions, extending lifespan significantly.
Hydrophobic Glass Coatings: Permanent nano-coatings on windshields will repel water so effectively that wipers will only be needed in extreme downpours, reducing wear and energy consumption.
Wireless Control: Elimination of control wiring through secure wireless protocols will simplify installation and reduce leak points.
Digital Twins: Creating a digital twin of the wiper system allows for simulation of wear and tear, optimizing replacement schedules and inventory management.
In the high-speed rail industry, visibility is safety. The difference between a professional installation and a makeshift job, between a predictive maintenance program and a reactive one, can be the difference between a safe journey and a disaster. By adopting the rigorous standards, specialized tools, and advanced strategies outlined in this guide, railway operators can ensure that their wiper systems perform flawlessly, no matter the speed or the storm.
To install and maintain high-speed train wipers like a pro is to commit to a culture of excellence, where every bolt is torqued to spec, every blade is inspected with care, and every potential failure is anticipated and prevented. It is a commitment to the safety of passengers, the efficiency of operations, and the reputation of the railway. As we move forward into an era of even faster trains and more challenging environments, this professional approach will be more critical than ever. Embrace these standards, invest in your team's training, and equip your fleet with the best technology available. The road (and rail) to safety is paved with precision.
