How to Install and Maintain Your Boat Windshield Wipers Like a Pro
2026-03-10 11:27:17


Introduction: The Critical Importance of Professional-Grade wiper Care

In the high-stakes environment of maritime navigation, visibility is not merely a convenience; it is the fundamental pillar of safety. For captains navigating through the fury of a Nor'easter, skippers maneuvering through crowded marinas in torrential rain, or offshore anglers battling squalls on open water, the difference between a safe passage and a catastrophic incident often comes down to seconds of reaction time. These precious seconds are directly dependent on the clarity of the view through the windshield. When salt spray, heavy rain, freezing sleet, or thick sea fog obscures the helm station, the vessel becomes vulnerable. In these critical moments, the boat’s windshield wiper system transforms from a simple accessory into a primary life-saving device, as essential as the compass, the GPS chartplotter, or the VHF radio.

However, unlike automotive wipers which operate in relatively controlled environments with moderate speeds and predictable weather patterns, marine wipers function in one of the most hostile environments on Earth. They are subjected to constant bombardment by saltwater, a highly conductive electrolyte that accelerates corrosion at an exponential rate. They face aerodynamic forces generated by vessel speeds combined with natural wind gusts, creating lift pressures capable of tearing inferior blades off the glass. They endure intense ultraviolet (UV) radiation that breaks down rubber polymers, extreme temperature fluctuations from tropical heat to polar ice, and the relentless vibration of diesel engines and slamming hulls.

For boat owners, fleet managers, and marine enthusiasts, treating wiper systems with a "install and forget" mentality is a recipe for disaster. A wiper system that is improperly installed, poorly maintained, or equipped with substandard components will inevitably fail when needed most. Streaking blades, chattering arms, seized motors, and corroded linkages are not just annoyances; they are signs of a compromised safety system. To operate a vessel safely in all conditions, one must approach wiper installation and maintenance with the precision and rigor of a professional marine technician.

This comprehensive guide is designed to be the definitive resource for installing and maintaining boat windshield wipers like a pro. We will move beyond basic tips to explore the deep technical nuances of marine wiper systems. We will dissect the selection process, detailing how to choose the right drive mechanism (electric vs. pneumatic), the correct blade compound for your specific climate, and the appropriate arm geometry for your windshield curvature. We will provide a step-by-step, photo-ready walkthrough of the installation process, covering everything from surface preparation and sealing techniques to electrical wiring standards and mechanical alignment.

Furthermore, we will establish a rigorous maintenance protocol tailored for saltwater environments. You will learn how to identify early signs of corrosion, how to properly clean and condition rubber blades to extend their lifespan, how to lubricate pivot points without attracting grime, and how to troubleshoot common issues like motor burnout, linkage binding, and uneven wiping patterns. We will also delve into the tools and materials required for professional-grade work, explaining why standard automotive parts and techniques are insufficient for marine applications.

Whether you are outfitting a new center console, refitting a classic cruiser, managing a charter fleet, or simply looking to upgrade your current setup to withstand the next big storm, this article will equip you with the knowledge and skills necessary to ensure your visibility system is bulletproof. By following the professional standards outlined in this guide, you will not only extend the life of your equipment and save money on premature replacements but, more importantly, you will ensure that when the sky turns black and the waves rise, your view of the horizon remains crystal clear.


Chapter 1: Understanding the Marine Environment – Why "Automotive Grade" Fails at Sea

Before diving into the mechanics of installation and maintenance, it is imperative to understand why marine wiper systems require such specialized attention. The failure to appreciate the unique hostility of the marine environment is the root cause of most wiper-related issues on boats. Many boat owners make the mistake of purchasing automotive wiper blades or motors because they are cheaper and readily available. While this might seem like a cost-effective solution in the short term, it almost always leads to rapid degradation and system failure.


The Chemistry of Saltwater Corrosion

Saltwater is not just water with salt dissolved in it; it is a potent electrolyte that facilitates rapid electrochemical reactions. When seawater sprays onto a windshield, it leaves behind salt crystals as the water evaporates. These crystals are hygroscopic, meaning they attract moisture from the air, keeping the surface damp and creating a continuous cycle of wetness that promotes corrosion.

Galvanic Corrosion: This is the silent killer of marine hardware. It occurs when two dissimilar metals are electrically connected in the presence of an electrolyte. In a wiper system, this often happens where an aluminum motor housing is bolted to a stainless steel mounting bracket, or where a brass linkage connects to a steel arm. In a saltwater environment, the less noble metal (the anode, often aluminum or zinc) will corrode sacrificially to protect the more noble metal (the cathode, like stainless steel). This process can eat through an aluminum motor housing in a matter of months, leading to water ingress, electrical shorts, and total motor failure. Professional marine installations mitigate this by using compatible metals (such as 316L stainless steel throughout), applying dielectric isolators (plastic washers/sleeves) between components, or utilizing heavy-duty protective coatings like zinc-nickel plating. Automotive parts rarely account for this, using mixed metals that corrode rapidly in salt air.

Pitting and Crevice Corrosion: Even high-grade stainless steel is not immune if not maintained. Pitting corrosion creates small, localized holes that can penetrate deep into the metal, compromising structural integrity without obvious external signs. Crevice corrosion occurs in tight spaces where oxygen is depleted, such as under bolt heads, inside pivot joints, or between the wiper blade clamp and the arm. Saltwater trapped in these crevices becomes acidic and aggressively attacks the metal. Professional maintenance involves regular inspection of these hidden areas and the application of corrosion inhibitors.

Salt Crystallization and Abrasion: As saltwater evaporates, it leaves behind sharp salt crystals. When the wiper blade moves across the glass, these embedded crystals act as abrasive grit, grinding against the rubber edge and the glass surface. This leads to rapid blade wear, streaking, and permanent scratching of the windshield. Over time, these micro-scratches diffuse light, causing glare at night and reducing overall visibility even when the wipers are not in use. Automotive rubber compounds are often too soft to resist this abrasion in marine conditions, hardening and cracking within weeks.


Aerodynamic Forces and High-Speed Dynamics

Marine vessels often operate at speeds that generate significant aerodynamic loads on the windshield. A boat moving at 25 knots into a 20-knot headwind experiences a relative wind speed of 45 knots over the bridge. At these speeds, the airflow over the curved surface of the windshield creates lift. If the wiper blade is not aerodynamically designed or if the wiper arm does not exert sufficient downforce, the blade will lift off the glass.

This "lift-off" phenomenon leaves a portion of the windshield unwiped, creating a dangerous blind spot. Conversely, if the arm spring tension is too high to counteract lift, it can cause excessive friction, leading to rapid rubber wear, motor strain, and potential glass damage. Professional marine wiper arms are engineered with heavier gauge springs and often feature aerodynamic fairings or streamlined designs to minimize lift. Automotive arms are generally not designed to handle these forces and will often fail to maintain contact at planing speeds.


UV Radiation and Thermal Extremes

Marine vessels operate globally, from the freezing waters of the Arctic to the scorching equatorial zones. This exposes wiper components to extreme thermal cycling. Rubber compounds must remain flexible at -40°F to clear ice and snow, yet resist softening and deformation at +140°F when baked by the sun on a tropical deck.

Ultraviolet (UV) radiation is particularly damaging to organic materials. The sun's UV rays break down the polymer chains in standard rubber, causing "checking" (surface cracking) and hardening. Once the rubber hardens, it loses its ability to conform to the glass curvature, resulting in poor wiping performance. Professional marine blades utilize advanced synthetic compounds (such as high-grade silicone, neoprene, or EPDM) that include UV stabilizers and antioxidants to withstand years of direct sunlight. Automotive blades, designed for garage storage and moderate climates, degrade rapidly under constant marine UV exposure.


Vibration and Mechanical Shock

The marine environment is inherently violent. Hulls slam into waves, engines generate low-frequency vibrations, and machinery creates constant shock loads. Standard wiper linkages and motors, designed for the smooth ride of a road vehicle, can suffer from fatigue failure in this environment. Bolts can loosen, gears can strip, and pivot bushings can wear out prematurely. Professional marine systems are built with robustness in mind, featuring oversized bearings, hardened steel gears, and locking fasteners designed to withstand continuous vibration.

Understanding these environmental factors is the first step in thinking like a pro. It dictates every decision you make, from the type of sealant you use to the frequency of your maintenance schedule. It explains why cutting corners on installation or using inferior parts is a false economy that compromises safety.

How to Install and Maintain Your Boat Windshield Wipers Like a Pro

Chapter 2: Selecting the Right Components – The Foundation of a Professional Installation

A professional installation begins long before you pick up a wrench; it starts with selecting the correct components for your specific vessel and operational profile. Using the wrong parts guarantees failure, regardless of how well they are installed.


Choosing the Drive System: Electric vs. Pneumatic

The heart of your wiper system is the motor. The choice between electric and pneumatic (air-driven) systems depends on your vessel's size, infrastructure, and usage.

Electric Wiper Systems:

  • Best For: Recreational boats, yachts, center consoles, cabin cruisers, and smaller commercial vessels (under 60 feet).

  • Pros: Easy to install (requires only wiring), quiet operation, precise speed control, widely available in 12V and 24V configurations. Modern Brushless DC (BLDC) motors offer high torque and long life.

  • Cons: Risk of corrosion if seals fail; limited torque for very large blades (over 30 inches) or heavy ice conditions.

  • Professional Tip: Look for motors with an IP67 or IP68 rating (waterproof and dust-tight). Ensure the housing is made of marine-grade stainless steel (316L) or heavily coated aluminum. Avoid motors with exposed carbon brushes if possible, as they wear out faster in humid environments.

Pneumatic Wiper Systems:

  • Best For: Large commercial vessels, naval ships, offshore supply vessels, and boats with existing compressed air systems.

  • Pros: Intrinsically safe (no spark risk), immense torque for large blades and ice clearing, highly durable, stall-proof (won't burn out if blocked).

  • Cons: Requires complex infrastructure (compressor, tanks, dryers, piping); noisy operation; requires regular maintenance of air quality to prevent freezing.

  • Professional Tip: If installing pneumatics, ensure your air lines have adequate moisture traps and dryers. Wet air will freeze in the motor exhaust in cold weather, disabling the wipers.


Selecting the Right Wiper Blades

The blade is the component that actually clears the water. Choosing the right compound and geometry is critical.

Rubber Compounds:

  • Neoprene: The traditional standard. Good balance of durability and flexibility. Resistant to ozone and moderate UV. Suitable for most general marine applications.

  • Silicone: The premium choice for professionals. Superior UV resistance (lasts 2x longer than neoprene), naturally hydrophobic (sheds water better), and remains flexible in extreme cold. Ideal for boats kept in sunny climates or used year-round.

  • EPDM: Excellent chemical and weather resistance. Often used in heavy-duty industrial marine applications.

  • Professional Tip: Avoid natural rubber blades at all costs. They will crack and disintegrate within months in the sun. Look for blades specifically labeled "Marine Grade" with UV inhibitors.

Blade Geometry:

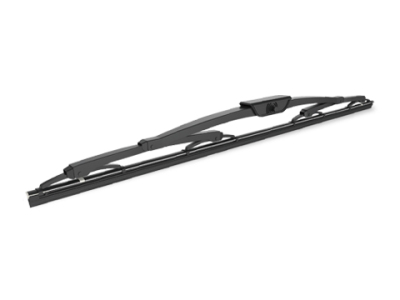

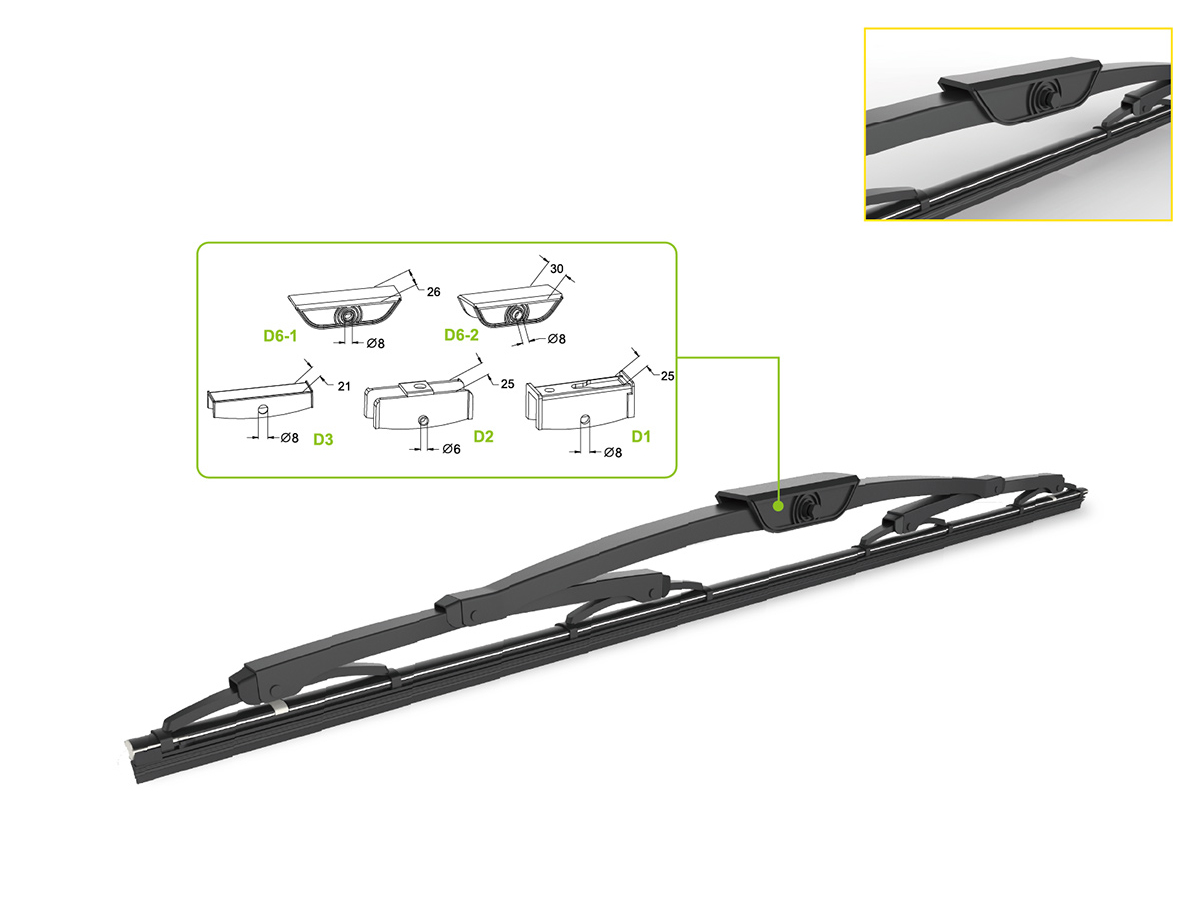

  • Conventional Framed: Traditional metal frame with multiple pressure points. Durable but prone to ice/salt clogging in the hinges. Must be stainless steel or plastic-coated to resist corrosion.

  • Beam Blades (Flat): Modern design with no external frame. Aerodynamic, resists ice buildup, and conforms better to curved windshields. Highly recommended for modern boats and high-speed applications.

  • Professional Tip: For curved windshields, beam blades are almost always superior. Ensure the blade length matches the manufacturer's specification for your arm; too long causes wrap-around, too short leaves blind spots.


Wiper Arms and Linkages

The arm transfers the motor's power to the blade. It must maintain consistent pressure across the glass.

  • Material: Must be 316 Stainless Steel. Avoid chrome-plated steel or aluminum unless heavily anodized and coated, as they will corrode quickly.

  • Spring Tension: Professional arms have adjustable tension. Ensure the spring is strong enough to hold the blade down at your boat's top speed but not so strong that it chatters.

  • Linkage: If using a dual-wiper system with a hidden motor, the linkage rods must be rigid and free of play. Ball joints should be sealed and greased.


Essential Tools and Materials for Professional Installation

To do the job like a pro, you need the right tools. Do not attempt a marine installation with generic hardware store supplies.

  • Drill and Bits: High-quality cobalt or titanium drill bits for stainless steel.

  • Sealant: Marine-grade polysulfide (e.g., Life Caulk) or polyurethane (e.g., 3M 5200/4200) sealant. Never use silicone sealant for structural bedding; it fails under vibration and UV.

  • Fasteners: 316 Stainless Steel bolts, nuts, and washers. Use nylon lock nuts or thread-locking compound (Loctite 243) to prevent loosening from vibration.

  • Electrical Supplies: Tinned copper wire (marine grade), heat-shrink tubing with adhesive lining (dual-wall), crimp terminals (gold or tin-plated), dielectric grease, and a quality crimping tool.

  • Cleaning Supplies: Acetone or marine solvent for surface prep, isopropyl alcohol for glass cleaning, and fresh water for rinsing.

  • Safety Gear: Safety glasses, gloves, and hearing protection.


Chapter 3: Step-by-Step Professional Installation Guide

Installing a marine wiper system requires precision, patience, and adherence to best practices. Follow this step-by-step guide to ensure a watertight, durable, and high-performance installation.


Step 1: Planning and Template Layout

Before drilling any holes, you must determine the optimal position for the wiper motor and the sweep pattern of the blades.

  1. Analyze the Windshield: Identify the critical viewing zone (the area directly in front of the helm). The wipers should prioritize clearing this area.

  2. Determine Pivot Points: Most manufacturers provide a template or dimensional drawing. If not, create a mock-up using cardboard or tape. Place the wiper arm on the glass and simulate the sweep.

  3. Check for Interference: Ensure the blade does not hit the window frame, dashboard, other wipers, or antennas at any point in the sweep. For dual wipers, ensure they overlap correctly in the center without colliding.

  4. Mark the Center Point: Once satisfied with the position, mark the center of the pivot hole on the glass/frame. Use a center punch to create a small indent for the drill bit to prevent wandering.

  5. Verify Motor Clearance: Check behind the mounting surface. Ensure there is enough space for the motor housing, gearbox, and linkage to rotate freely without hitting wires, pipes, or structural members.


Step 2: Surface Preparation and Drilling

Proper surface preparation is the key to preventing leaks and corrosion.

  1. Clean the Area: Thoroughly clean the mounting area with acetone or a marine solvent to remove wax, grease, oil, and dirt. The surface must be bone dry and pristine.

  2. Drill the Pilot Hole: Start with a small pilot hole (e.g., 1/8 inch) to ensure accuracy. Drill slowly to prevent overheating the bit, especially if drilling through fiberglass or tempered glass frames.

  3. Enlarge the Hole: Gradually increase the drill bit size until you reach the final diameter specified by the manufacturer. For stainless steel mounting plates, use cutting oil to lubricate the bit.

  4. Deburr and Bevel: Remove any sharp edges or burrs from the hole using a deburring tool or a larger drill bit by hand. This prevents stress cracks in fiberglass and ensures a flat seating surface for the motor.

  5. Seal the Raw Edges: If drilling through fiberglass, apply a thin coat of epoxy or resin to the raw edges of the hole to prevent water wicking into the laminate, which can cause delamination.


Step 3: Bedding and Mounting the Motor

This is the most critical step for waterproofing. A poor seal here will lead to water intrusion into the cabin.

  1. Apply Sealant: Apply a generous bead of marine-grade sealant (polysulfide or polyurethane) around the base of the motor housing and on the mating surface of the hull/frame. Do not skimp; the goal is to create a complete gasket.

  2. Insert Fasteners: Insert the 316 stainless steel bolts through the motor base and the hull. If passing through a hollow section, use a backing plate on the inside to distribute the load.

  3. Tighten Uniformly: Tighten the nuts in a star pattern to ensure even pressure. Snug them up until sealant begins to squeeze out around the entire perimeter.

  4. Clean Excess: Immediately wipe away the excess sealant with a rag soaked in the appropriate solvent (mineral spirits for polysulfide, etc.) to create a neat, professional finish.

  5. Cure Time: Allow the sealant to cure fully according to the manufacturer's instructions (usually 24-48 hours) before exposing it to water or stressing the mount. Do not rush this step.


Step 4: Electrical Wiring (For Electric Systems)

Marine electrical work must be done to ABYC (American Boat and Yacht Council) or ISO standards to prevent fires and corrosion.

  1. Run Marine-Grade Wire: Use tinned copper wire sized appropriately for the current draw and distance (consult wire gauge charts). Route the wire away from sharp edges, moving parts, and heat sources. Secure it with UV-resistant cable ties every 18 inches.

  2. Make Waterproof Connections: Strip the wire ends and attach crimp terminals using a high-quality ratcheting crimper. Slide dual-wall heat-shrink tubing (with adhesive lining) over the connection.

  3. Heat Shrink: Apply heat evenly until the tubing shrinks tightly and adhesive oozes out from both ends, creating a watertight seal. Never use electrical tape alone in a marine environment; it fails quickly.

  4. Install Fuse/Breaker: Install an inline fuse or circuit breaker as close to the power source (battery) as possible. Size the fuse according to the motor's amp rating plus a safety margin (usually 125%).

  5. Grounding: Ensure a solid ground connection to the vessel's negative bus bar. Clean the grounding point to bare metal before attaching the ring terminal.

  6. Switch Integration: Connect the motor to a dedicated switch at the helm. Consider installing a variable speed controller or an intermittent relay for added functionality.


Step 5: Linkage and Arm Installation

  1. Connect Linkage: If using a remote motor, connect the linkage rods to the motor output shaft and the wiper pivot. Ensure all ball joints are tight but move freely. Lubricate with marine grease.

  2. Mount the Arm: Place the wiper arm onto the splined shaft. Align it so that the blade rests at the correct "park" position (usually horizontal at the bottom of the sweep).

  3. Secure the Arm: Tighten the retaining nut securely. Use a drop of thread-locking compound to prevent it from vibrating loose.

  4. Attach the Blade: Snap or bolt the wiper blade onto the arm. Ensure it is locked in place firmly.


Step 6: Testing and Alignment

  1. Dry Test: Turn on the wipers without water to check for smooth operation. Listen for unusual noises (grinding, clicking) which indicate binding or misalignment.

  2. Wet Test: Spray the windshield with fresh water (or soapy water) and run the wipers. Observe the sweep pattern.

  3. Check Pressure: The blade should maintain full contact with the glass throughout the arc. If it lifts at speed, the spring tension may need adjustment (if adjustable) or the arm angle may need correction.

  4. Verify Park Position: Turn off the wipers. They should return to the designated park position automatically. If not, adjust the cam or switch settings on the motor.

  5. Leak Check: Inspect the mounting area from the inside and outside for any signs of water intrusion.

How to Install and Maintain Your Boat Windshield Wipers Like a Pro


Chapter 4: Professional Maintenance Protocols for Saltwater Longevity

Installation is only half the battle. To keep your wipers performing like new, you must adopt a rigorous maintenance schedule. Saltwater waits for no one, and neglect is the fastest path to failure.


Daily/Pre-Voyage Checks

  • Visual Inspection: Before leaving the dock, quickly inspect the blades for tears, cracks, or stiffness. Check the arms for signs of corrosion or loose fittings.

  • Glass Cleaning: Rinse the windshield with fresh water to remove salt crusts, bird droppings, and bug splatter. Never run wipers on a dry or dirty windshield; the salt crystals act as sandpaper, destroying the blade edge instantly.

  • Blade Rinse: Lift the arms and rinse the rubber blades with fresh water to remove accumulated salt.


Weekly Maintenance

  • Deep Clean Blades: Wipe down the rubber squeegee with a soft cloth soaked in mild soapy water or a dedicated rubber cleaner. This removes oil, grease, and embedded debris that can cause streaking. For silicone blades, use a cleaner compatible with silicone to avoid stripping the hydrophobic coating.

  • Clean Arms and Housings: Wash the wiper arms and motor housings with soap and water to remove salt spray. Dry them thoroughly.

  • Check Pivot Points: Wiggle the wiper arm gently. There should be no play in the pivot. If you feel looseness, it may indicate worn bushings or a loose nut.


Monthly Maintenance

  • Lubrication: Apply a small amount of marine-grade grease or Teflon-based lubricant to the pivot points and linkage joints. Avoid petroleum-based greases that can degrade rubber or attract dirt. Wipe away excess lubricant.

  • Inspect Seals: Check the sealant around the motor base for cracks or gaps. Re-apply sealant if necessary to maintain watertight integrity.

  • Electrical Check: Inspect wiring connections for signs of green corrosion (verdigris) or fraying. Ensure heat-shrink seals are intact.

  • Tension Check: Verify that the arm tension is still adequate. If the blade is skipping or chattering, the spring may have weakened, or the glass may be contaminated.


Seasonal/Annual Maintenance

  • Blade Replacement: Even with perfect care, wiper blades are consumable items. In harsh saltwater environments, replace blades every 6 to 12 months. If you notice persistent streaking, hardening, or cracking, replace them immediately. Do not wait for them to fail completely.

  • Motor Servicing:

    • Electric: Inspect the motor housing for corrosion. If the motor is slowing down or making noise, it may need brush replacement (if applicable) or gear lubrication. Some sealed units require replacement rather than repair.

    • Pneumatic: Drain all moisture from air lines. Replace air filters. Consider rebuilding the motor with a seal kit if it has been in service for several years.

  • Linkage Overhaul: Disassemble linkage joints if accessible. Clean out old grease and salt, inspect for wear, and repack with fresh marine grease.

  • Glass Polishing: Once a year, polish the windshield with a marine-grade glass polish to remove minor scratches and oxidation. A smooth glass surface reduces friction and extends blade life.


Winterization (For Cold Climates)

If you are storing your boat for the winter or operating in freezing conditions:

  • Lift Arms: If possible, lift the wiper arms away from the glass to prevent the blades from freezing to the windshield.

  • Cover Blades: Use wiper blade covers or socks to protect the rubber from ice and snow accumulation.

  • De-ice Carefully: Never force frozen wipers to move. This can burn out the motor or strip gears. Thaw the windshield and blades completely before operation.

  • Fluid Check: If your system uses washer fluid, ensure it is rated for below-freezing temperatures to prevent line bursting.


Chapter 5: Troubleshooting Common Wiper Problems

Even with professional installation and maintenance, issues can arise. Here is how to diagnose and fix common problems like a pro.


Problem: Streaking

Symptoms: Lines of water remain on the glass after the wiper passes.Causes:

  • Worn or damaged blade edge.

  • Dirty windshield (wax, oil, salt).

  • Dirty blade (oil, debris).

  • Incorrect arm tension (too light).Solutions:

  1. Clean the glass thoroughly with a glass cleaner or vinegar solution to remove wax and oil.

  2. Clean the blade edge with alcohol or soapy water.

  3. If streaking persists, replace the blade.

  4. Check arm tension; adjust or replace the spring if necessary.


Problem: Chattering/Skipping

Symptoms: The wiper jumps across the glass, making a loud noise and leaving unwiped spots.Causes:

  • Contaminated glass (tree sap, exhaust soot, wax).

  • Hardened or cracked blade rubber.

  • Bent wiper arm (blade not sitting square to the glass).

  • Lack of lubrication in pivots.Solutions:

  1. Deep clean the glass with a degreaser or clay bar designed for automotive glass.

  2. Inspect the blade for hardness; replace if cracked or stiff.

  3. Check the arm alignment. The blade should be perpendicular to the glass at the bottom of the sweep. Bend the arm slightly (carefully) to correct the angle.

  4. Lubricate pivot points.


Problem: Slow Operation

Symptoms: Wipers move slower than usual or struggle to complete the sweep.Causes:

  • Low voltage (electric) or low air pressure (pneumatic).

  • Corroded electrical connections.

  • Frozen or binding linkage.

  • Heavy ice/snow load.

  • Failing motor.Solutions:

  1. Check battery voltage and alternator output. Clean battery terminals.

  2. Inspect wiring for corrosion; clean and re-seal connections.

  3. Check linkage for freedom of movement; lubricate or straighten bent rods.

  4. Clear ice/snow manually before operating.

  5. If the motor is hot or smelling burnt, it may need replacement.


Problem: Motor Failure

Symptoms: Wipers do not move at all; fuse blows immediately; motor hums but doesn't turn.Causes:

  • Blown fuse/breaker.

  • Water intrusion causing short circuit.

  • Seized gears due to lack of lubrication or corrosion.

  • Burned out windings.Solutions:

  1. Check and replace the fuse. If it blows again immediately, do not keep replacing it; find the short.

  2. Inspect the motor housing for water. If wet, the motor likely needs replacement.

  3. Try to turn the arm manually (with power off). If it's stuck, the linkage or gearbox is seized. Disassemble and inspect.

  4. Replace the motor if internal damage is confirmed.


Problem: Leaking Mount

Symptoms: Water dripping into the cabin around the wiper motor.Causes:

  • Failed sealant bed.

  • Loose mounting bolts.

  • Cracked fiberglass/frame.Solutions:

  1. Tighten mounting bolts slightly (do not overtighten).

  2. If leaking persists, the motor must be removed. Scrape off old sealant, clean surfaces thoroughly, and re-bed with fresh marine sealant.

  3. Inspect the surrounding area for cracks; repair with epoxy/fiberglass if needed.


Chapter 6: Advanced Tips and Future Trends in Marine Wiper Technology

To truly operate like a pro, stay ahead of the curve with advanced techniques and emerging technologies.


Hydrophobic Glass Coatings

One of the biggest advancements in marine visibility is the application of permanent hydrophobic coatings (like Rain-X Professional or ceramic coatings) to windshields. These coatings cause water to bead up and roll off the glass at speed, significantly reducing the need for wiper usage.

  • Pro Tip: If you use a hydrophobic coating, ensure your wiper blades are compatible. Some aggressive rubber compounds can strip the coating. Silicone blades are generally safe and work synergistically with these coatings.

  • Benefit: Extends blade life, improves visibility in light rain, and reduces motor wear.


Heated Wiper Systems

For vessels operating in cold climates, heated wiper blades and arms are a game-changer. These systems incorporate heating elements that melt ice and snow on contact, preventing buildup and ensuring operation in freezing conditions.

  • Installation Note: Requires careful wiring and integration with the vessel's electrical system, often requiring a dedicated relay and higher amperage circuits.

  • Benefit: Eliminates the danger of forcing frozen wipers and ensures visibility in winter storms.


Smart Wiper Systems

The future of marine wipers is smart integration. New systems feature:

  • Rain Sensors: Optical sensors detect rainfall intensity and automatically adjust wiper speed.

  • Torque Sensing: Motors detect obstructions (ice, debris) and automatically reverse or increase power to clear them without burning out.

  • IoT Connectivity: Some systems can send diagnostic data to a central display, alerting the crew to maintenance needs before failure occurs.


Eco-Friendly Disposal

As a responsible boat owner, consider the environmental impact of discarded wiper blades. Rubber and metal components can be recycled in some jurisdictions. Look for manufacturers who use bio-based rubber compounds or offer recycling programs. Proper disposal prevents microplastics and hazardous materials from entering the marine ecosystem.


Conclusion: Mastery of Visibility is Mastery of Safety

Installing and maintaining boat windshield wipers like a pro is not about showing off technical skills; it is about cultivating a mindset of safety and preparedness. The marine environment is unforgiving, and it respects only those who respect it. By choosing the right components, executing a flawless installation, and adhering to a disciplined maintenance schedule, you ensure that your vessel's most critical safety system—the ability to see—is never compromised.

Remember, a wiper system is only as good as its weakest link. A $50 blade can ruin a $500 motor if neglected. A $5 tube of sealant can prevent thousands of dollars in water damage. The details matter. The effort you put into your wipers today pays dividends in safety and peace of mind tomorrow.

Whether you are a weekend warrior or a seasoned captain, let this guide be your reference. Treat your wipers with the professionalism they deserve. Keep your tools ready, your seals fresh, and your blades sharp. Because when the storm rolls in and the visibility drops to zero, the only thing standing between you and safety is the clear circle swept by your wipers. Make sure they are ready to perform. Sail safe, see clear, and navigate with confidence.


This website uses cookies to ensure you get the best experience on our website.

Accept Reject
