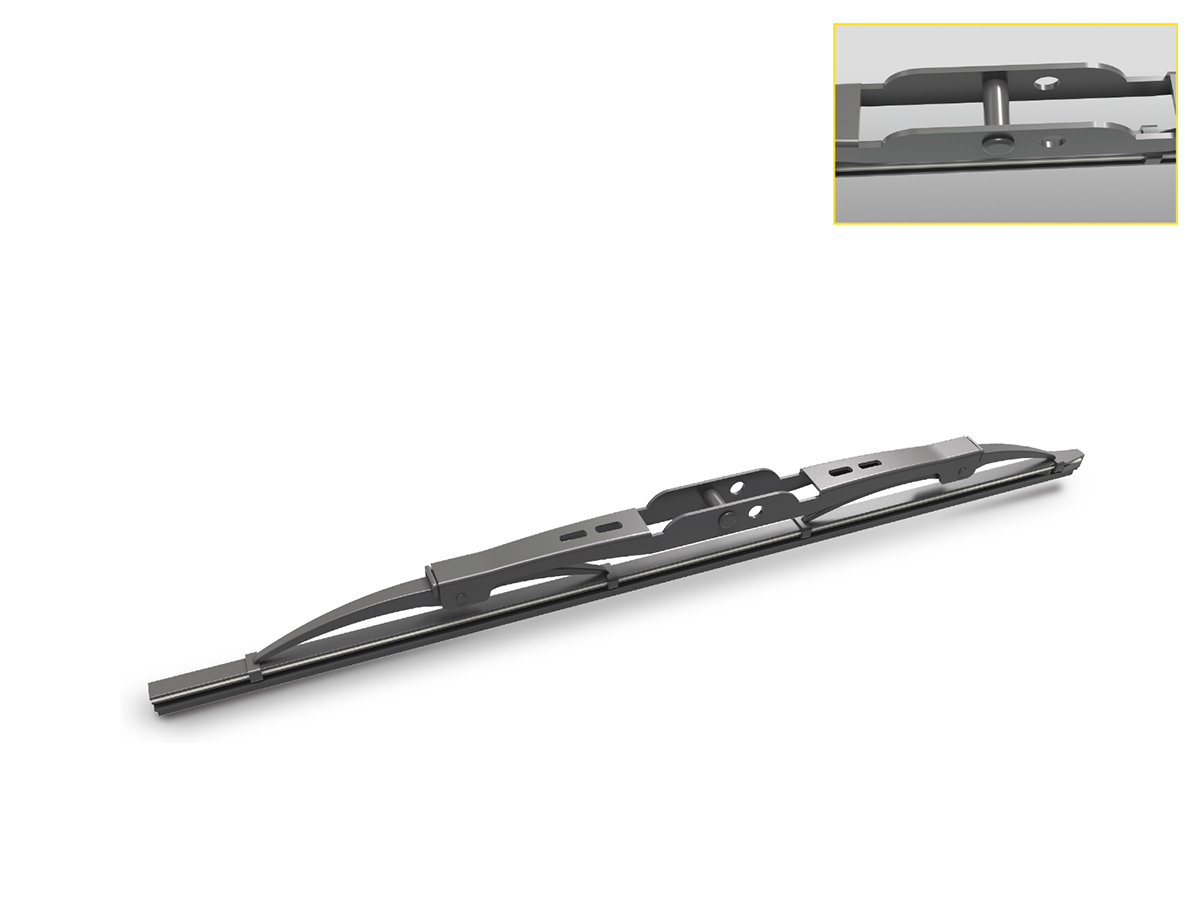

H19 Bone Rear Window wipers

Introduction: The Timeless Reliability of Traditional Frame Wipers

In the automotive aftermarket, while beam-style blades have gained popularity, the Traditional Frame (Bone) Wiper remains the gold standard for durability, cost-effectiveness, and structural integrity, especially for rear window applications. The H19 Bone Rear Window Wiper exemplifies this classic engineering, offering a robust solution for sedans, SUVs, hatchbacks, and light trucks that demand consistent performance in all weather conditions.

The "H19" designation identifies a specific, widely compatible profile within the traditional wiper category. Known for its multi-pressure point system and reinforced metal skeleton, the H19 series is engineered to conform perfectly to the varying curvatures of rear windshields. Unlike modern single-piece beams that can struggle with extreme temperature fluctuations, the H19 Bone Design utilizes a proven hinged framework that distributes pressure evenly, ensuring streak-free wiping even on older or highly curved glass. This guide provides comprehensive, SEO-optimized industry data on the H19 rear wiper, ideal for auto parts distributors, repair shops, and vehicle owners seeking a reliable, long-lasting replacement.

Defining the H19 Bone Design: Engineering & Structure

The H19 Bone Rear Wiper is defined by its "skeleton" construction—a series of hinged metal or high-strength plastic bridges that hold the rubber blade in place. This traditional architecture offers distinct mechanical advantages over newer designs.

Key Structural Features:

• Multi-Point Pressure Distribution: The hinged "bone" frame creates 4 to 8 distinct pressure points along the blade length. This ensures that the rubber edge maintains constant contact with the glass, even on the complex, often double-curved surfaces of rear windows.

• Reinforced Metal Skeleton: Typically constructed from galvanized steel or zinc-alloy, the H19 frame resists bending and deformation under heavy snow loads or ice buildup, providing superior structural rigidity.

• Universal Adapter Compatibility: The H19 series usually features a standardized mounting clip (often a pin-arm or bayonet style) that adapts easily to the vast majority of OEM rear wiper arms found on vehicles manufactured from the 1990s to the present.

• Replaceable Rubber Refills: A hallmark of the traditional bone design is the ability to replace just the rubber insert (refill) rather than the entire assembly, making the H19 an economically and environmentally friendly choice.

Core Advantages: Why Choose the H19 Traditional Frame?

Opting for the H19 Bone Rear Wiper offers specific benefits that cater to durability, versatility, and value:

1. Superior Performance on Curved Glass

Rear windows often feature aggressive curvature that can cause beam blades to lift at the edges. The hinged design of the H19 allows each segment of the frame to pivot independently, adapting precisely to the glass contour. This eliminates "unwiped zones" and ensures a clean sweep from edge to edge.

2. Unmatched Durability in Extreme Weather

• Snow & Ice Resistance: The open-frame structure of the H19 prevents snow and ice from clogging the mechanism. Unlike enclosed beam blades where ice can freeze the internal spring, the H19’s exposed hinges allow debris to fall through, keeping the blade functional in freezing conditions.

• Heat Dissipation: The metal frame dissipates heat more effectively than plastic beam shells, preventing the rubber from softening or deforming in high-temperature environments.

3. Cost-Effectiveness & Sustainability

• Lower Initial Cost: Traditional bone wipers like the H19 are generally more affordable to manufacture, offering a budget-friendly option for fleets and cost-conscious consumers without sacrificing quality.

• Refill Capability: When the rubber wears out, users can simply slide in a new H19-compatible refill, extending the life of the metal frame indefinitely. This reduces plastic waste and long-term maintenance costs.

4. Robust Construction for Heavy-Duty Use

The rigid metal skeleton of the H19 makes it ideal for vehicles that face rougher conditions, such as work trucks, rural SUVs, and older vehicle models where wiper arm tension might be inconsistent. The frame’s strength compensates for weaker arm springs, maintaining adequate pressure for a clean wipe.

5. Universal Fitment

The H19 profile is one of the most common rear wiper sizes globally. Its standardized connector system ensures compatibility with a vast array of makes and models, simplifying inventory management for retailers and repair shops.

Technical Specifications: H19 Bone Series Data Sheet

The following table details the standard industry specifications for H19 Bone Rear Window Wipers. These parameters ensure high performance and broad compatibility across vehicle types.

Note: Always verify the specific blade length and connector type required by your vehicle’s owner manual before purchasing.

Ideal Vehicle Applications

The H19 Bone Rear Wiper is particularly well-suited for:

• Legacy & Older Vehicles: Cars manufactured before 2010 often have wiper arms designed specifically for traditional frame blades.

• SUVs & Crossovers with Curved Rear Glass: Vehicles where beam blades fail to conform to the steep rear window angle.

• Fleet Vehicles & Work Trucks: Where durability, low cost, and ease of refill replacement are priorities.

• Regions with Heavy Snowfall: Drivers who need a wiper that won’t clog with ice and snow.

• Budget-Conscious Consumers: Owners looking for reliable performance without the premium price tag of beam blades.

• Classic Car Restorations: Maintaining original equipment aesthetics and functionality.

Maintenance & Installation Best Practices

To ensure the longevity and optimal performance of H19 Bone Wipers, follow these industry guidelines:

1. Inspect Hinges Regularly: Check the metal hinges for rust or stiffness. A little silicone spray can keep the joints moving freely.

2. Clean the Frame: Wash the metal skeleton during car washes to remove road salt and grime that can cause corrosion over time.

3. Replace Refills Promptly: At the first sign of streaking or chattering, replace the rubber refill. This is cheaper and faster than replacing the whole unit.

4. Check Arm Tension: Traditional frames rely heavily on correct wiper arm tension. If the blade skips, the arm spring may need adjustment or replacement.

5. Winter Care: Before activating wipers in freezing conditions, manually clear heavy ice from the blade and glass to prevent motor strain.

6. Proper Installation: Ensure the adapter clicks securely onto the wiper arm. A loose connection is the primary cause of noise and poor performance in bone-style wipers.

Conclusion: The Enduring Value of the H19 Bone Wiper

In a market flooded with complex new designs, the H19 Bone Rear Window Wiper stands as a testament to proven engineering. Its traditional frame design offers unmatched conformity to curved glass, superior resistance to ice clogging, and the economic benefit of refillable components. For vehicle owners, fleet managers, and retailers, the H19 represents a smart, durable, and reliable choice for maintaining clear rear visibility.

Whether navigating a blizzard or clearing summer dust, the H19 Traditional Frame delivers the consistent, streak-free performance that drivers trust. Embrace the durability of the bone design—choose the H19 series for lasting value and safety.

About Tuten Wiper

Zhejiang Totem Auto-parts Articles Manufacturing Co., Ltd. is a professional company integrating R&D, design, manufacturing, and sales of windshield wipers and rubber strips. The factory covers an area of 20 acres, with a building area of over 12,000 square meters and more than 150 employees. After more than ten years of practical experience and technical accumulation in the windshield wiper industry, the company has successfully passed IATF16949 quality system certification, ISO14001 environmental management system certification, and health certification. It has accumulated more than 50 patents in the windshield wiper industry and has an annual production capacity of 12 million wipers. It has successfully supplied wipers to more than 20 domestic automakers, covering passenger cars, heavy trucks, engineering vehicles, buses, high-speed rail, subways, aviation, and military industries. Its products are exported to the United States, Europe, Russia, Central and South America, Southeast Asia, and the Middle East. With stable product quality and a high reputation, it has won unanimous praise from customers and is a technically proficient windshield wiper manufacturing expert and a trustworthy supplier in the windshield wiper industry.

Our Production Capacity

Our production workshop is equipped with modern manufacturing equipment and standardized assembly lines, maintaining a clean and well-organized environment with clearly defined production processes. From raw material storage and component machining to product assembly and quality inspection, every stage is carried out strictly in accordance with established production standards. The workshop includes dedicated areas for precision machining, assembly, and product testing, ensuring stable quality and performance throughout the manufacturing process. With a strict quality management system and the collaboration of an experienced technical team, we are able to efficiently complete various production tasks while ensuring that every product leaving the factory meets industry quality requirements and customer standards.

Frequently Asked Questions (FAQ) About Wipers

1. What are wipers used for?

Wipers are mechanical devices designed to remove water, rain, snow, dust, or debris from glass surfaces such as windshields and windows. They are widely used in vehicles, trains, marine vessels, and industrial equipment to maintain clear visibility and improve operational safety in various weather conditions.

2. What are the main components of a wiper system?

A typical wiper system consists of several key components, including:

• Wiper motor

• Wiper arm

• wiper blade

• Linkage mechanism

• Control switch

• Mounting hardware

These components work together to ensure smooth and consistent wiping motion across the glass surface.

3. What types of wipers are commonly used?

Wipers are available in different types depending on the application and environment. Common types include:

• Conventional frame wipers

• Beam wipers

• Pantograph wipers

• marine wipers

• Heavy-duty industrial wipers

Each type is designed to meet specific performance requirements such as large windshield coverage, high wind resistance, or harsh environmental conditions.

4. How does a wiper motor work?

A wiper motor converts electrical energy into mechanical motion. It drives the linkage system, which moves the wiper arms back and forth across the windshield. Most modern wiper motors provide multiple speed settings and intermittent wiping modes to adapt to different weather conditions.

5. What materials are commonly used for wiper blades?

Wiper blades are typically made from durable materials designed for long-term outdoor use, including:

• Natural rubber

• Synthetic rubber

• Silicone rubber

These materials offer flexibility, weather resistance, and effective water removal performance.

6. What are the advantages of high-quality wiper systems?

High-quality wiper systems provide several important benefits:

• Improved driving or operational visibility

• Efficient removal of rain, snow, and debris

• Smooth and quiet wiping performance

• Long service life and durability

• Reliable operation in harsh environments

These advantages make wipers essential for transportation safety and equipment reliability.

7. What factors should be considered when selecting wipers?

When choosing a suitable wiper system, several factors should be considered:

• Windshield size and curvature

• Operating environment

• Required wiping coverage

• Motor power and speed

• Mounting configuration

• Weather resistance

Selecting the correct wiper system ensures optimal performance and durability.

8. How often should wiper blades be replaced?

Wiper blades typically need replacement every 6 to 12 months, depending on usage and environmental conditions. Frequent exposure to sunlight, saltwater, or extreme temperatures may shorten the lifespan of the blade material.

9. Why do wipers sometimes leave streaks on the windshield?

Streaking may occur due to several reasons, including:

• Worn or damaged rubber blades

• Dirt or debris on the windshield

• Improper blade pressure

• Aging blade material

Regular cleaning and timely blade replacement can help maintain clear wiping performance.

10. Are wipers used only for automobiles?

No. Wipers are widely used across multiple industries, including:

• Automotive vehicles

• High-speed trains and metro systems

• Marine vessels and ships

• Construction machinery

• Agricultural equipment

These applications require specialized wiper systems designed to handle different environments and operational demands.
