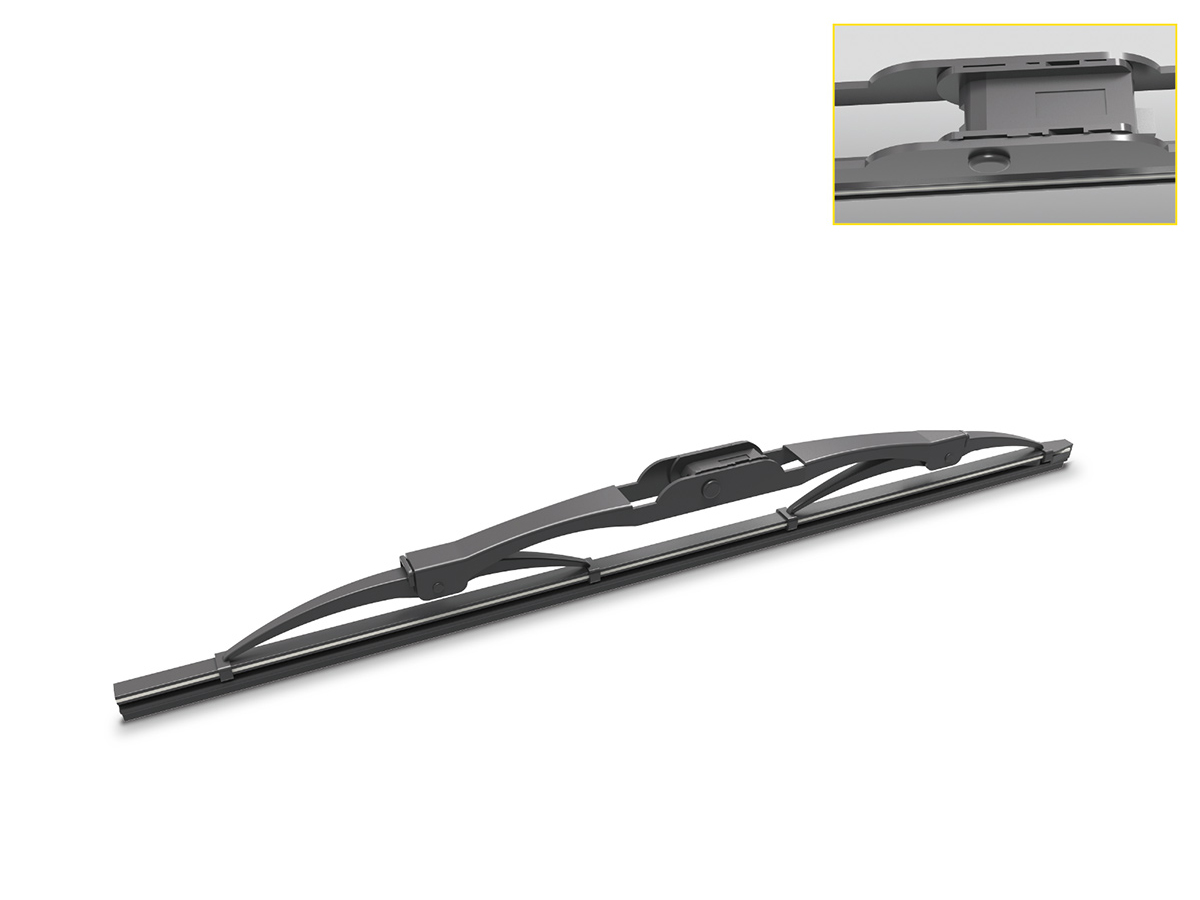

H18 Bone Rear Window wiper

Executive Summary: Proven Durability for Unobstructed Views

In the demanding world of automotive safety, clear rear visibility is non-negotiable. While modern beam blades offer sleek aesthetics, the Heavy Duty H18 Bone Rear Window Wiper remains the industry benchmark for structural integrity, all-weather reliability, and cost-effective performance. Designed specifically for the complex curvature of rear windshields on SUVs, hatchbacks, and vans, the H18 series delivers a streak-free wipe in the harshest conditions.

The "H18" designation identifies a robust traditional frame (bone) architecture engineered with reinforced metal hinges and a multi-point pressure system. Unlike single-piece alternatives that can freeze solid or lose tension on curved glass, the Heavy Duty H18 utilizes an open-frame design to prevent ice clogging and ensure uniform contact from edge to edge. This guide provides comprehensive, SEO-optimized technical data on the H18 series, ideal for auto parts distributors, fleet managers, and vehicle owners seeking a durable, universal replacement for clear rear visibility.

Defining the Heavy Duty H18 Standard

The Heavy Duty H18 Bone Wiper is defined by its classic "skeleton" construction—a series of articulated metal bridges that hold a high-grade rubber blade. This time-tested design offers distinct mechanical advantages, particularly for rear applications where glass curvature and weather exposure are critical factors.

Core Engineering Features:

• Multi-Point Hinged Frame: The H18 features 4 to 6 independent pivot points (hinges) along its length. This allows the blade to flex and conform precisely to the double-curved surfaces common in modern rear windows, eliminating blind spots.

• Reinforced Galvanized Steel Skeleton: Constructed from high-tensile, corrosion-resistant steel, the "bone" frame provides the rigidity needed to push through heavy snow, ice sheets, and caked-on mud without collapsing.

• Open-Frame Architecture: The exposed design is a game-changer for winter driving. Snow and ice cannot clog the mechanism; instead, debris falls through the gaps, ensuring the blade remains functional when enclosed beam blades fail.

• Universal Adapter System: The H18 profile typically includes a standardized connector (often a pin-lock or bayonet style) compatible with 90%+ of OEM rear wiper arms globally, making it a true universal fit.

• Refillable Design: A key sustainability feature; the rubber element can be replaced independently of the metal frame, extending the product's lifecycle and reducing waste.

Why Choose Heavy Duty H18 for Clear Rear Visibility?

Upgrading to or specifying Heavy Duty H18 Bone Wipers offers distinct advantages for safety, durability, and value:

1. Superior Conformity to Curved Glass

Rear windows on SUVs and hatchbacks are often steeply raked and highly curved. Single-piece beam blades frequently lift at the edges on these surfaces, leaving dangerous unwiped zones. The hinged H18 design ensures constant, uniform pressure from tip to tip, guaranteeing crystal clear rear visibility regardless of glass shape.

2. Unmatched Winter & All-Weather Performance

• Ice & Snow Resistance: The open-frame structure prevents ice buildup within the mechanism. Drivers can easily knock off snow without damaging internal components.

• Heavy Rain Clarity: The weighted metal frame maintains downward pressure even at highway speeds, preventing aerodynamic lift that can cause streaking.

• Dust & Mud Removal: The rigid skeleton provides the necessary force to scrape away dried mud and road grime that softer beams might simply smear across the glass.

3. Durability & Longevity

Built for harsh environments, the Heavy Duty H18 outlasts many plastic-based alternatives:

• Corrosion Protection: Treated with anti-rust coatings to withstand road salt, sea air, and humid climates.

• UV Stability: The metal frame does not degrade or become brittle under intense sunlight, a common failure mode for plastic beam shells.

• Consistent Tension: Mechanical hinges maintain their spring tension longer than molded rubber beams, ensuring consistent wiping performance over time.

4. Cost-Effectiveness & Sustainability

• Lower Total Cost of Ownership: With a competitive initial price and the ability to replace only the rubber refill, the H18 is the most economical choice for fleets and budget-conscious consumers.

• Eco-Friendly: By replacing only the worn rubber strip, users significantly reduce plastic waste compared to discarding entire beam blade assemblies.

5. Universal Compatibility

The H18 profile is one of the most widely adopted rear wiper standards globally. It fits thousands of vehicle models from major manufacturers (Toyota, Ford, VW, Honda, Nissan, Hyundai, etc.), simplifying inventory management for retailers and repair shops.

Technical Specifications: Heavy Duty H18 Data Sheet

The following table outlines the standard industry specifications for Heavy Duty H18 Bone Rear Window Wipers. These metrics ensure high performance and broad compatibility.

Note: Always consult your vehicle’s owner manual to verify the exact blade length required, though the H18 adapter system accommodates most standard connections.

Ideal Vehicle Applications

The Heavy Duty H18 Bone Wiper is the preferred choice for:

• SUVs & Crossovers: Vehicles with large, curved rear windows where beam blades often fail to conform.

• Hatchbacks & Compact Cars: Models requiring precise edge-to-edge wiping for tight urban maneuvering.

• Fleet Vehicles: Taxis, delivery vans, and service trucks where durability and low maintenance costs are paramount.

• Regions with Harsh Winters: Areas prone to heavy snowfall and freezing rain where open-frame designs excel.

• Older & Legacy Vehicles: Cars manufactured before 2015 that were originally equipped with traditional frame wipers.

• Off-Road & Adventure Vehicles: Trucks and SUVs exposed to mud, dust, and rugged terrain.

Maintenance & Installation Best Practices

To maximize the clear rear visibility provided by H18 Wipers, follow these expert guidelines:

1. Easy Installation: Align the H18 adapter with your wiper arm until it clicks securely. Ensure no play or looseness exists to prevent noise.

2. Regular Hinge Inspection: Periodically check the metal hinges for rust or stiffness. Apply a small amount of silicone lubricant if movement feels restricted.

3. Clean the Frame: During car washes, rinse the metal skeleton to remove accumulated road salt and grime, preventing long-term corrosion.

4. Refill Replacement: At the first sign of streaking or chattering, replace the rubber refill instead of the whole unit. This takes seconds and saves money.

5. Winter Protocol: Before activating wipers in freezing conditions, manually knock off heavy ice/snow from the blade to prevent motor strain.

6. Glass Cleaning: Keep the rear window free of oily films and bug splatter to extend the life of the rubber edge.

Conclusion: Trust the H18 for Reliable Rear Visibility

When it comes to safety, there is no substitute for clear rear visibility. The Heavy Duty H18 Bone Rear Window Wiper combines timeless engineering with modern material science to deliver a wiping solution that is durable, versatile, and exceptionally effective. Its ability to conform to curved glass, resist ice clogging, and offer cost-saving refill options makes it the smart choice for drivers worldwide.

Whether you are managing a large fleet or maintaining a family SUV, the H18 Traditional Frame ensures that your rear view remains unobstructed in any weather condition. Choose the Heavy Duty H18—the proven standard for reliability and clarity.

About Tuten Wiper

Zhejiang Totem Auto-parts Articles Manufacturing Co., Ltd. is a professional company integrating R&D, design, manufacturing, and sales of windshield wipers and rubber strips. The factory covers an area of 20 acres, with a building area of over 12,000 square meters and more than 150 employees. After more than ten years of practical experience and technical accumulation in the windshield wiper industry, the company has successfully passed IATF16949 quality system certification, ISO14001 environmental management system certification, and health certification. It has accumulated more than 50 patents in the windshield wiper industry and has an annual production capacity of 12 million wipers. It has successfully supplied wipers to more than 20 domestic automakers, covering passenger cars, heavy trucks, engineering vehicles, buses, high-speed rail, subways, aviation, and military industries. Its products are exported to the United States, Europe, Russia, Central and South America, Southeast Asia, and the Middle East. With stable product quality and a high reputation, it has won unanimous praise from customers and is a technically proficient windshield wiper manufacturing expert and a trustworthy supplier in the windshield wiper industry.

Our Production Capacity

Our production workshop is equipped with modern manufacturing equipment and standardized assembly lines, maintaining a clean and well-organized environment with clearly defined production processes. From raw material storage and component machining to product assembly and quality inspection, every stage is carried out strictly in accordance with established production standards. The workshop includes dedicated areas for precision machining, assembly, and product testing, ensuring stable quality and performance throughout the manufacturing process. With a strict quality management system and the collaboration of an experienced technical team, we are able to efficiently complete various production tasks while ensuring that every product leaving the factory meets industry quality requirements and customer standards.

Frequently Asked Questions (FAQ) About Wipers

1. What are wipers used for?

Wipers are mechanical devices designed to remove water, rain, snow, dust, or debris from glass surfaces such as windshields and windows. They are widely used in vehicles, trains, marine vessels, and industrial equipment to maintain clear visibility and improve operational safety in various weather conditions.

2. What are the main components of a wiper system?

A typical wiper system consists of several key components, including:

• Wiper motor

• Wiper arm

• wiper blade

• Linkage mechanism

• Control switch

• Mounting hardware

These components work together to ensure smooth and consistent wiping motion across the glass surface.

3. What types of wipers are commonly used?

Wipers are available in different types depending on the application and environment. Common types include:

• Conventional frame wipers

• Beam wipers

• Pantograph wipers

• marine wipers

• Heavy-duty industrial wipers

Each type is designed to meet specific performance requirements such as large windshield coverage, high wind resistance, or harsh environmental conditions.

4. How does a wiper motor work?

A wiper motor converts electrical energy into mechanical motion. It drives the linkage system, which moves the wiper arms back and forth across the windshield. Most modern wiper motors provide multiple speed settings and intermittent wiping modes to adapt to different weather conditions.

5. What materials are commonly used for wiper blades?

Wiper blades are typically made from durable materials designed for long-term outdoor use, including:

• Natural rubber

• Synthetic rubber

• Silicone rubber

These materials offer flexibility, weather resistance, and effective water removal performance.

6. What are the advantages of high-quality wiper systems?

High-quality wiper systems provide several important benefits:

• Improved driving or operational visibility

• Efficient removal of rain, snow, and debris

• Smooth and quiet wiping performance

• Long service life and durability

• Reliable operation in harsh environments

These advantages make wipers essential for transportation safety and equipment reliability.

7. What factors should be considered when selecting wipers?

When choosing a suitable wiper system, several factors should be considered:

• Windshield size and curvature

• Operating environment

• Required wiping coverage

• Motor power and speed

• Mounting configuration

• Weather resistance

Selecting the correct wiper system ensures optimal performance and durability.

8. How often should wiper blades be replaced?

Wiper blades typically need replacement every 6 to 12 months, depending on usage and environmental conditions. Frequent exposure to sunlight, saltwater, or extreme temperatures may shorten the lifespan of the blade material.

9. Why do wipers sometimes leave streaks on the windshield?

Streaking may occur due to several reasons, including:

• Worn or damaged rubber blades

• Dirt or debris on the windshield

• Improper blade pressure

• Aging blade material

Regular cleaning and timely blade replacement can help maintain clear wiping performance.

10. Are wipers used only for automobiles?

No. Wipers are widely used across multiple industries, including:

• Automotive vehicles

• High-speed trains and metro systems

• Marine vessels and ships

• Construction machinery

• Agricultural equipment

These applications require specialized wiper systems designed to handle different environments and operational demands.
