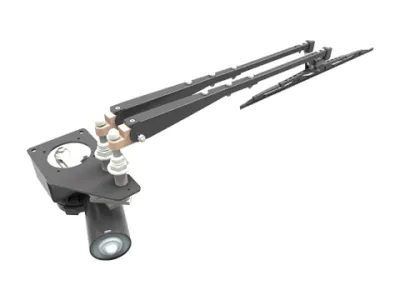

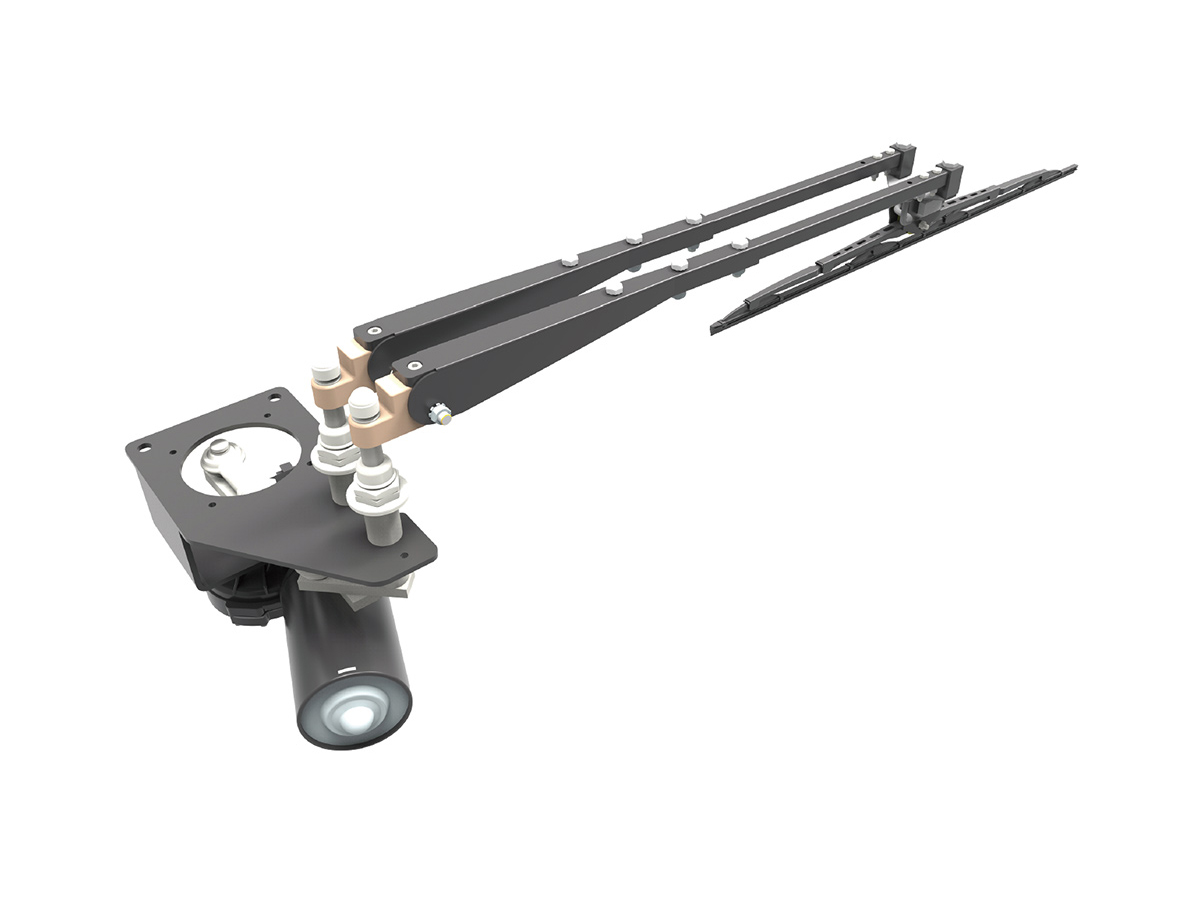

High-Speed Rail and Subway wiper assembly

Comprehensive Industry Guide for Urban Rail and High-Speed Train Applications

1. What Is a High-Speed Rail and Subway wiper Assembly?

A high-speed rail and subway wiper assembly is a complete windshield wiping system installed on the driver cab of electric multiple units (EMU), metro trains, light rail vehicles (LRV), and high-speed trains.

It ensures clear visibility under extreme weather and high-speed aerodynamic conditions, including:

• Heavy rain

• Snow and ice

• Sand and dust

• Insect impact

• High-pressure airflow at 200–350 km/h

Unlike automotive systems, railway wiper assemblies are engineered for:

• Larger curved windshields

• Continuous long-duty operation

• Strong vibration resistance

• High-torque output

• Compliance with railway safety standards

2. Key Components of a Railway Wiper Assembly

A typical rail vehicle wiper assembly includes the following integrated components:

2.1 Wiper Motor

• High-torque DC motor (24V / 72V / 110V systems common in rail)

• Designed for continuous duty cycles

• IP-rated waterproof housing

• Thermal overload protection

2.2 Linkage Mechanism

• Heavy-duty transmission arms

• Synchronized motion for large windshield coverage

• Stainless steel or coated anti-corrosion material

2.3 wiper arm

• Spring-loaded design

• Adjustable pressure force

• Aerodynamic profile for high-speed airflow stability

2.4 wiper blade

• Natural rubber or silicone rubber compound

• Reinforced spine for curvature conformity

• UV-resistant and ozone-resistant

2.5 Washer System (Optional)

• Integrated washer pump

• Heated nozzle (for cold climate operation)

• Anti-freeze compatible reservoir

3. Why Railway Wiper Assemblies Are Different from Automotive Systems

Railway wiper assemblies must withstand:

• High aerodynamic lift forces

• Strong vibration from rail movement

• Long service intervals

• Strict railway fire and smoke regulations

4. Technical Specifications (Typical Reference Values)

Below is a general specification table for high-speed rail and metro wiper assemblies:

Note: Specifications vary depending on train model and regional standards.

5. Performance Advantages of High-Speed rail wiper Assemblies

5.1 High Torque Stability

Maintains blade contact pressure even at extreme speeds.

5.2 Aerodynamic Optimization

Prevents blade lift during high-speed operation.

5.3 Weather Adaptability

Designed for rain, snow, sandstorms, and ice.

5.4 Long Service Life

Industrial-grade materials reduce maintenance frequency.

5.5 Safety Compliance

Engineered to meet international railway safety and fire standards.

6. Application Scenarios

High-speed rail and subway wiper assemblies are widely used in:

• High-speed EMU trains

• Metro and subway trains

• Light rail transit (LRT) vehicles

• Intercity commuter trains

• Driverless metro systems

These systems ensure uninterrupted driver visibility in:

• Urban metro tunnels

• Coastal humid climates

• Desert railways

• Cold region high-speed rail lines

7. Design Considerations for Rail Vehicle Manufacturers

When selecting or designing a railway windshield wiper assembly, engineers typically evaluate:

• Windshield curvature radius

• Required sweep coverage percentage

• Train maximum operating speed

• Climate conditions

• Electrical system compatibility

• Noise limitations

• Maintenance accessibility

Customization is often required for:

• Single-arm pantograph systems

• Dual-arm synchronized systems

• Opposed-arm large windshield coverage

8. Maintenance and Lifecycle Management

Proper maintenance improves reliability and safety.

Routine Inspection Checklist:

• Check blade wear and edge deformation

• Inspect arm spring tension

• Verify motor noise level

• Confirm linkage lubrication

• Test washer spray alignment

Recommended Replacement Cycle:

• Blade: 6–12 months (depending on climate)

• Motor assembly: Based on cycle count or operational hours

Preventive maintenance reduces unexpected downtime and enhances operational safety.

9. Compliance and Industry Standards

Railway wiper assemblies must align with international railway system requirements. Commonly referenced standards include:

• International Electrotechnical Commission (IEC electrical safety standards)

• International Organization for Standardization (ISO quality management standards)

• European Committee for Standardization (EN railway standards)

Manufacturers must also meet:

• Fire resistance regulations

• Smoke toxicity requirements

• Vibration and shock testing

• EMC compatibility testing

10. Market Trends in railway wiper systems

The global rail industry is shifting toward:

• Higher operating speeds

• Autonomous metro systems

• Energy-efficient components

• Smart diagnostic integration

Future railway wiper assemblies may integrate:

• Self-adjusting pressure systems

• Ice-detection sensors

• Smart maintenance alerts

• Lightweight composite materials

As high-speed rail networks expand worldwide, demand for durable, high-performance wiper assemblies continues to grow.

Conclusion

A high-speed rail and subway wiper assembly is a mission-critical visibility system engineered for extreme speed, demanding weather, and long-duty rail operations.

With robust construction, high torque motors, aerodynamic blade systems, and strict safety compliance, these assemblies play a vital role in ensuring safe and uninterrupted rail transportation.

For railway OEMs, system integrators, and maintenance operators, selecting the right railway wiper assembly is essential for performance reliability, lifecycle efficiency, and passenger safety.

About Tuten Wiper

Zhejiang Totem Auto-parts Articles Manufacturing Co., Ltd. is a professional company integrating R&D, design, manufacturing, and sales of windshield wipers and rubber strips. The factory covers an area of 20 acres, with a building area of over 12,000 square meters and more than 150 employees. After more than ten years of practical experience and technical accumulation in the windshield wiper industry, the company has successfully passed IATF16949 quality system certification, ISO14001 environmental management system certification, and health certification. It has accumulated more than 50 patents in the windshield wiper industry and has an annual production capacity of 12 million wipers. It has successfully supplied wipers to more than 20 domestic automakers, covering passenger cars, heavy trucks, engineering vehicles, buses, high-speed rail, subways, aviation, and military industries. Its products are exported to the United States, Europe, Russia, Central and South America, Southeast Asia, and the Middle East. With stable product quality and a high reputation, it has won unanimous praise from customers and is a technically proficient windshield wiper manufacturing expert and a trustworthy supplier in the windshield wiper industry.

Our Production Capacity

Our production workshop is equipped with modern manufacturing equipment and standardized assembly lines, maintaining a clean and well-organized environment with clearly defined production processes. From raw material storage and component machining to product assembly and quality inspection, every stage is carried out strictly in accordance with established production standards. The workshop includes dedicated areas for precision machining, assembly, and product testing, ensuring stable quality and performance throughout the manufacturing process. With a strict quality management system and the collaboration of an experienced technical team, we are able to efficiently complete various production tasks while ensuring that every product leaving the factory meets industry quality requirements and customer standards.

Frequently Asked Questions (FAQ) About Wipers

1. What are wipers used for?

Wipers are mechanical devices designed to remove water, rain, snow, dust, or debris from glass surfaces such as windshields and windows. They are widely used in vehicles, trains, marine vessels, and industrial equipment to maintain clear visibility and improve operational safety in various weather conditions.

2. What are the main components of a wiper system?

A typical wiper system consists of several key components, including:

• Wiper motor

• Wiper arm

• Wiper blade

• Linkage mechanism

• Control switch

• Mounting hardware

These components work together to ensure smooth and consistent wiping motion across the glass surface.

3. What types of wipers are commonly used?

Wipers are available in different types depending on the application and environment. Common types include:

• Conventional frame wipers

• Beam wipers

• Pantograph wipers

• marine wipers

• Heavy-duty industrial wipers

Each type is designed to meet specific performance requirements such as large windshield coverage, high wind resistance, or harsh environmental conditions.

4. How does a wiper motor work?

A wiper motor converts electrical energy into mechanical motion. It drives the linkage system, which moves the wiper arms back and forth across the windshield. Most modern wiper motors provide multiple speed settings and intermittent wiping modes to adapt to different weather conditions.

5. What materials are commonly used for wiper blades?

Wiper blades are typically made from durable materials designed for long-term outdoor use, including:

• Natural rubber

• Synthetic rubber

• Silicone rubber

These materials offer flexibility, weather resistance, and effective water removal performance.

6. What are the advantages of high-quality wiper systems?

High-quality wiper systems provide several important benefits:

• Improved driving or operational visibility

• Efficient removal of rain, snow, and debris

• Smooth and quiet wiping performance

• Long service life and durability

• Reliable operation in harsh environments

These advantages make wipers essential for transportation safety and equipment reliability.

7. What factors should be considered when selecting wipers?

When choosing a suitable wiper system, several factors should be considered:

• Windshield size and curvature

• Operating environment

• Required wiping coverage

• Motor power and speed

• Mounting configuration

• Weather resistance

Selecting the correct wiper system ensures optimal performance and durability.

8. How often should wiper blades be replaced?

Wiper blades typically need replacement every 6 to 12 months, depending on usage and environmental conditions. Frequent exposure to sunlight, saltwater, or extreme temperatures may shorten the lifespan of the blade material.

9. Why do wipers sometimes leave streaks on the windshield?

Streaking may occur due to several reasons, including:

• Worn or damaged rubber blades

• Dirt or debris on the windshield

• Improper blade pressure

• Aging blade material

Regular cleaning and timely blade replacement can help maintain clear wiping performance.

10. Are wipers used only for automobiles?

No. Wipers are widely used across multiple industries, including:

• Automotive vehicles

• High-speed trains and metro systems

• Marine vessels and ships

• Construction machinery

• Agricultural equipment

These applications require specialized wiper systems designed to handle different environments and operational demands.
